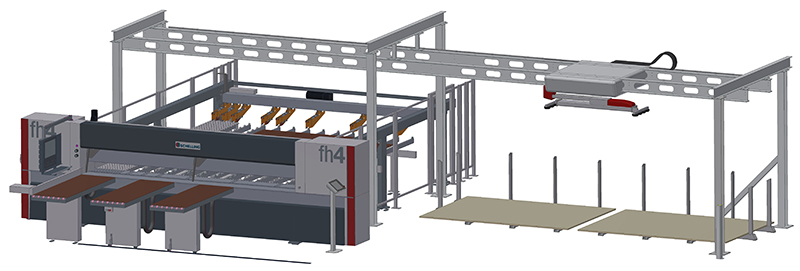

AUTOMATIC LINEAR FEEDER SYSTEM LCV

Enhanced Production and Increased Ergonomics.

Developed for panel saws, this system and offers the highest level of ergonomics and a considerable savings potential. It may be combined with IMA cutting centers and Schelling panel saws. The LCV is modularly constructed, enabling storage to be enlarged to any size, depending on requirement and possibility of installation in production environment.  Stacked panels can be requested either at the saw or at the system's PC. The Windows-based software is user-friendly.

Technical Data

Plant Size

System design

Standard | two-axis system (XZ)

Optional | three-axis system (XYZ)

Length

Standard | up to 164' (50 m)

Movement Speeds

X-axis

Standard | from 262.5 ft/min (80 m/min)

Z-axis

Standard | 82 ft/min (25 m/min)

Panel Sizes

Length

Standard | from 78.7 - 165.4" (2,000 - 4,200 mm)

Optional | longer on request

Width

Standard | 23.6 - 82.7" (600 - 2,100 mm)

Optional | longer on request

Thickness

Standard | from 0.31" (8 mm)

Panel weight

Standard | 441 lbs (200 kg)

Optional | up to 661.4 lbs (300 kg)

Stacking

Stack height

Standard | 70.8" (1,800 mm)

Optional | up to 98.4" (2,500 mm)

Stack distance

Standard | 5.9" (150 mm)

Lifting hole

Standard | 78.7 - 23.6" (2,000 x 600 mm)
