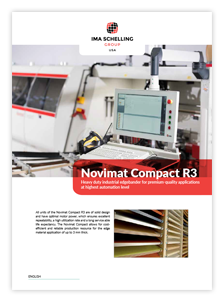

NOVIMAT COMPACT R3 EDGEBANDER

LOOKING FOR ZERO GLUELINES? SEE THE LIGHT WITH IMALUX.

The Novimat Compact R3 edgebanding machine makes highly professional edge processing possible on an industrial scale. This IMA edgebander handles all aspects of edge processing. Coiled materials can be applied with glue such as EVA or PUR. It also includes additional units for grooving or smoothing operations.

PROFESSIONAL EDGE PROCESSING.

Manufacturers want edgebanders that deliver the highest quality edge-processing with minimum floor-space requirements and at a lower price.  With its good standard equipment, flexibility and automation guarantee, the Novimat Compact R3 edgebanding machine offers all of that.

VARIABLE FEED SPEEDS UP TO 20 M/MIN.

By automating essential functions, the Novimat Compact R3 can perfectly process all pending tasks and edging tapes. With steplessly variable feed speeds up to 20 m/min. and quick glue change via the IMA quick-lock system, the Novimat Compact R3 lets the industry perform cost-effective, high-quality edgebanding without restrictions.

  • Automation of essential functions permits easy-to-use, one-person operation
  • Designed for industrial use, specifically jointing, edgebanding and fine-finishing of edging materials
  • Solid and rigid fabricated base frame
  • Double-joined V belt top pressure track for optimal, gentle guidance of short components and sensitive surfaces
  • Top pressure adjustable electronically
  • IMA Quick-lock system enables fast glue change
  • Centralized lubrication of feed chain
  • Panel support device can be positioned within working width
  • Program-controlled feed speed
  • Multi-profile technology with automatic profile change capabilities
  • Modern 19" wide-screen machine controller by touch, keyboard or mouse
  • Optionally available with IMALUX for jointless edge processing*
*IMALUX is an optional upgrade



Processing Units

Hand
Scanner

End Trimming
Unit

Pre-Melting
Units

Contour Milling
Unit kfax20

IMALUX


Multi-Profile
Milling Unit

Technical Data

Basic Equipment

Feed Speed

46 - 65.6 ft/min (14 - 20 m/min)

Total Weight

Approx. 16,00 lbs (7,200 kg)

Workpiece Overhang from Chain Track

1.5" (38 mm) "including edging for edging thicknesses of .01" (0.3 mm) to .12" (3 mm)"

Panel

Panel Thickness

min. .31" (8 mm) | max. 2.36" (60 mm)

Panel Width

min. 2.56" (65 mm)

Panel Length

min. 5.91" (150 mm)

Edging Material

Edging Thickness

min. .01" (0.3 mm) | max. .12" (3 mm)

Edging Height

min. .55" (14 mm) | max. 2.56" (65 mm)

Edging Length

min. 12.6" (320 mm)

Edging Cross-Section

max. 4.72 in2 (120 mm2)
